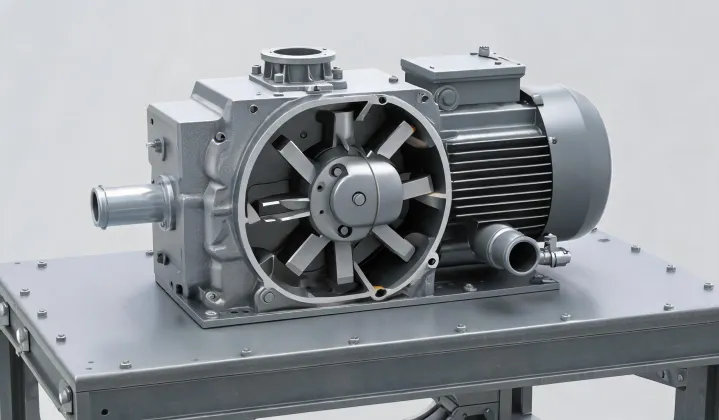

Define the representative chamber or volume, the process gas, whether gas ballast will be open, and the measurement point for working pressure. A shop ultimate-pressure test without inlet restriction is not the same as pump-down of a leaking vessel. If dry rotary vane construction is proposed, do not reuse oil-sealed Torr tables; ask for ACFM or m³/h at the working pressure and for vane-wear and dust-handling notes. Two-stage oil-sealed machines address a lower ultimate-pressure band; they still need ballast and filtration answers.

Confirm three-phase supply, connected load in kW, footprint, lifting, cooling water, exhaust treatment location and PLC interface names for run, fault, oil level or vane-temperature alarms. Inlet piping length and diameter belong on the same sheet because they change pump-down time even when the rotor geometry is understood. Spare parts for vanes, filters and oil should be listed as included or extra. Rotary Vane Vacuum Pump Sourcing does not install the skid or size the exhaust stack.

Write pass criteria as chamber pressure, leak-up rate and oil or vane condition after the named duty cycle. FAT and SAT remain on the purchase contract with the named factory. Limitations to keep visible: rotary vane pumps are not a substitute for high-vacuum turbomolecular stacks; dry construction does not prove wet-gas suitability; oil-sealed construction does not prove compatibility with unlisted solvents. No numerical saving versus a market average is published. Send the interface list with the RFQ.
